DAE CC2030 Gateway Kit - Cloud-Based Metering Solution for Electricity & Water Monitoring | Ideal for Smart Homes, Utilities & IoT Applications

Product Description

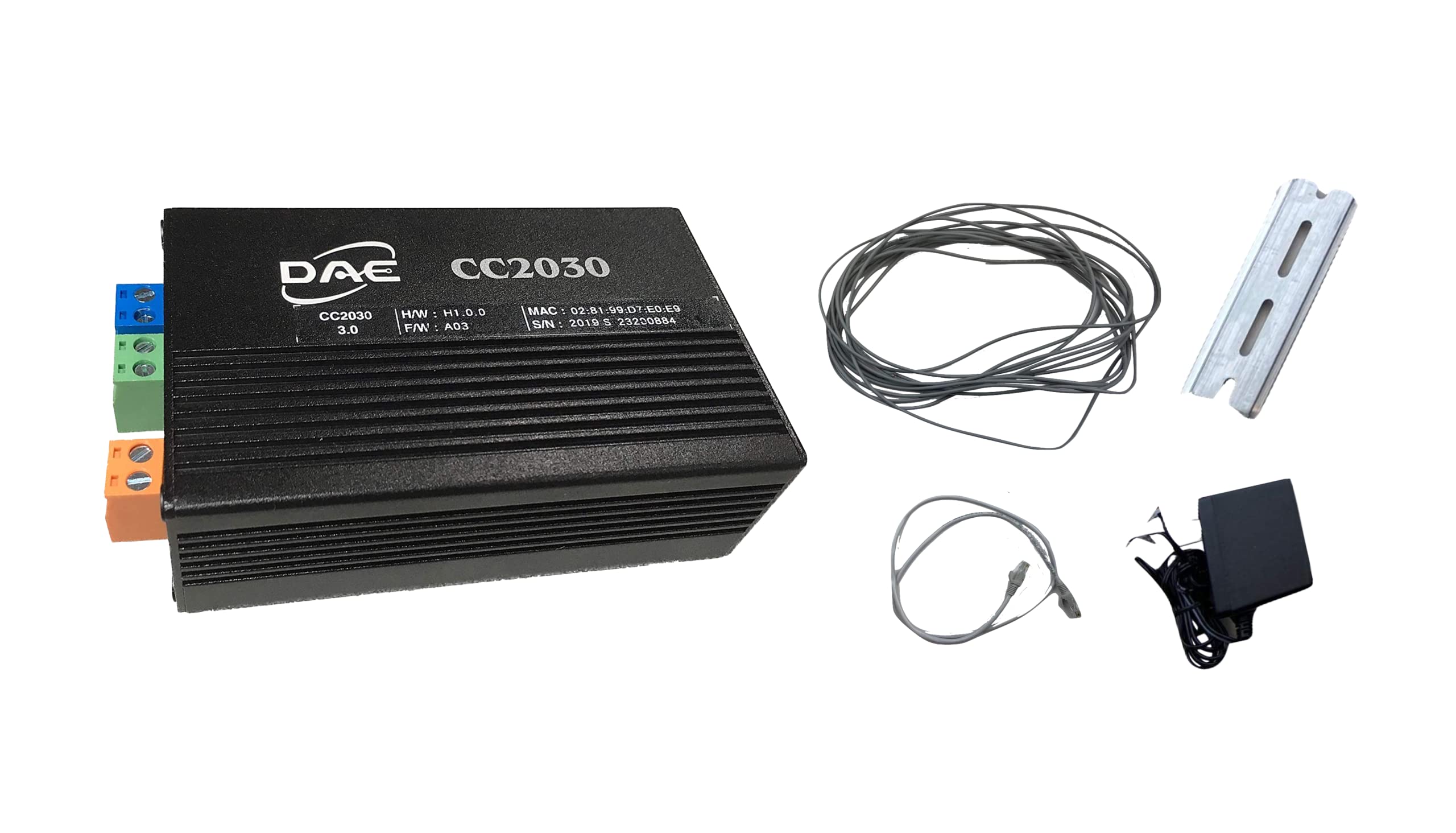

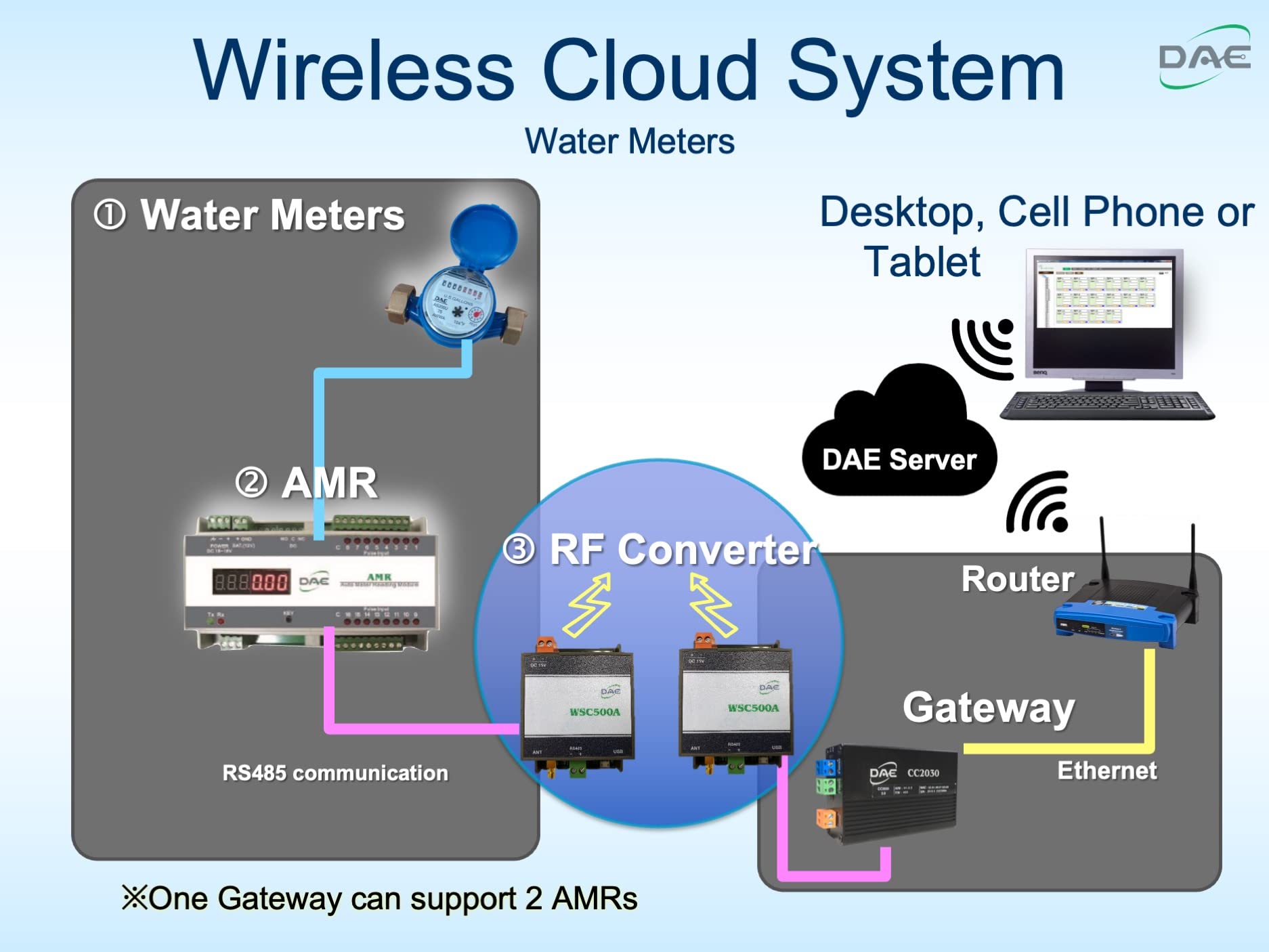

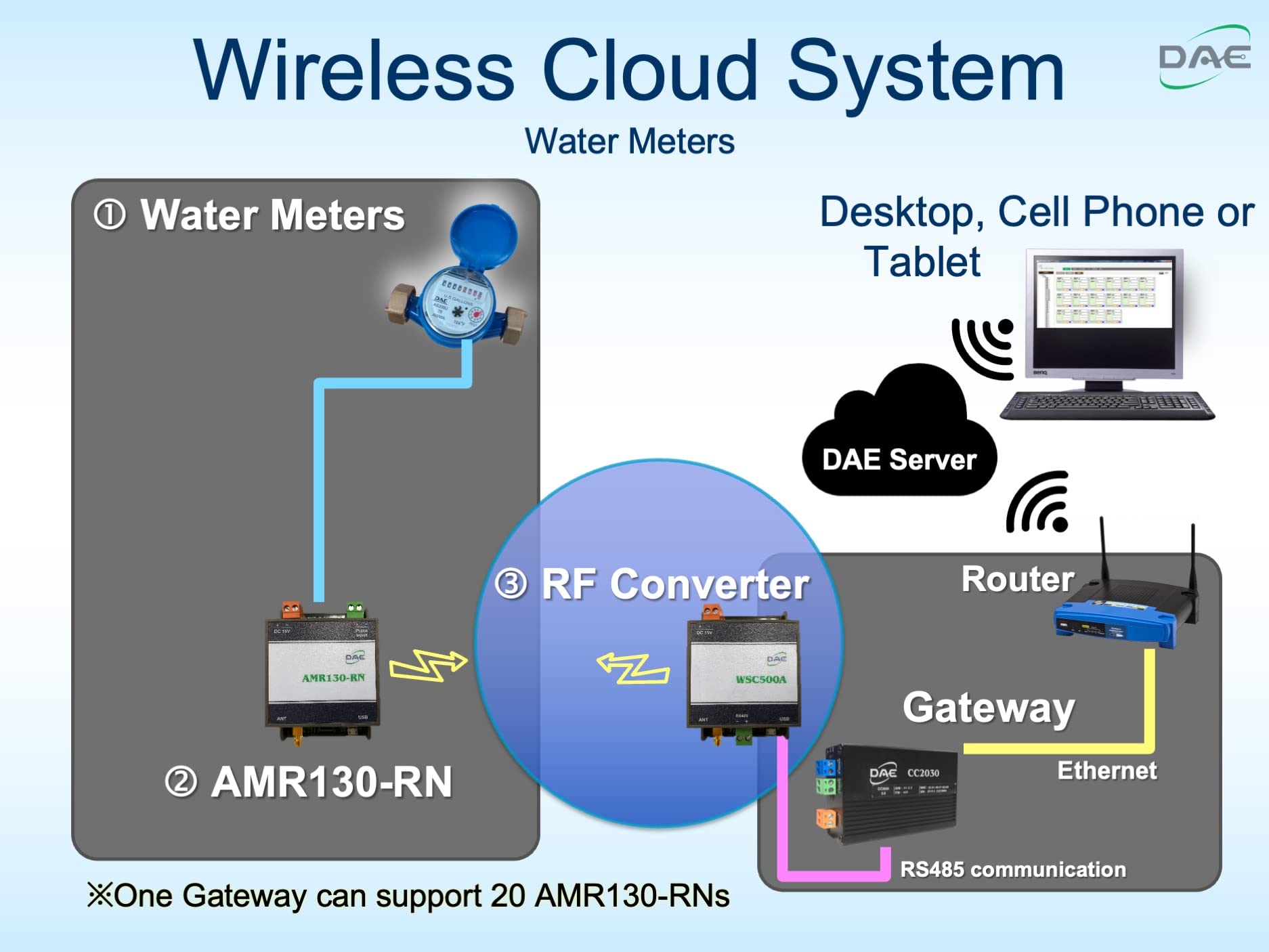

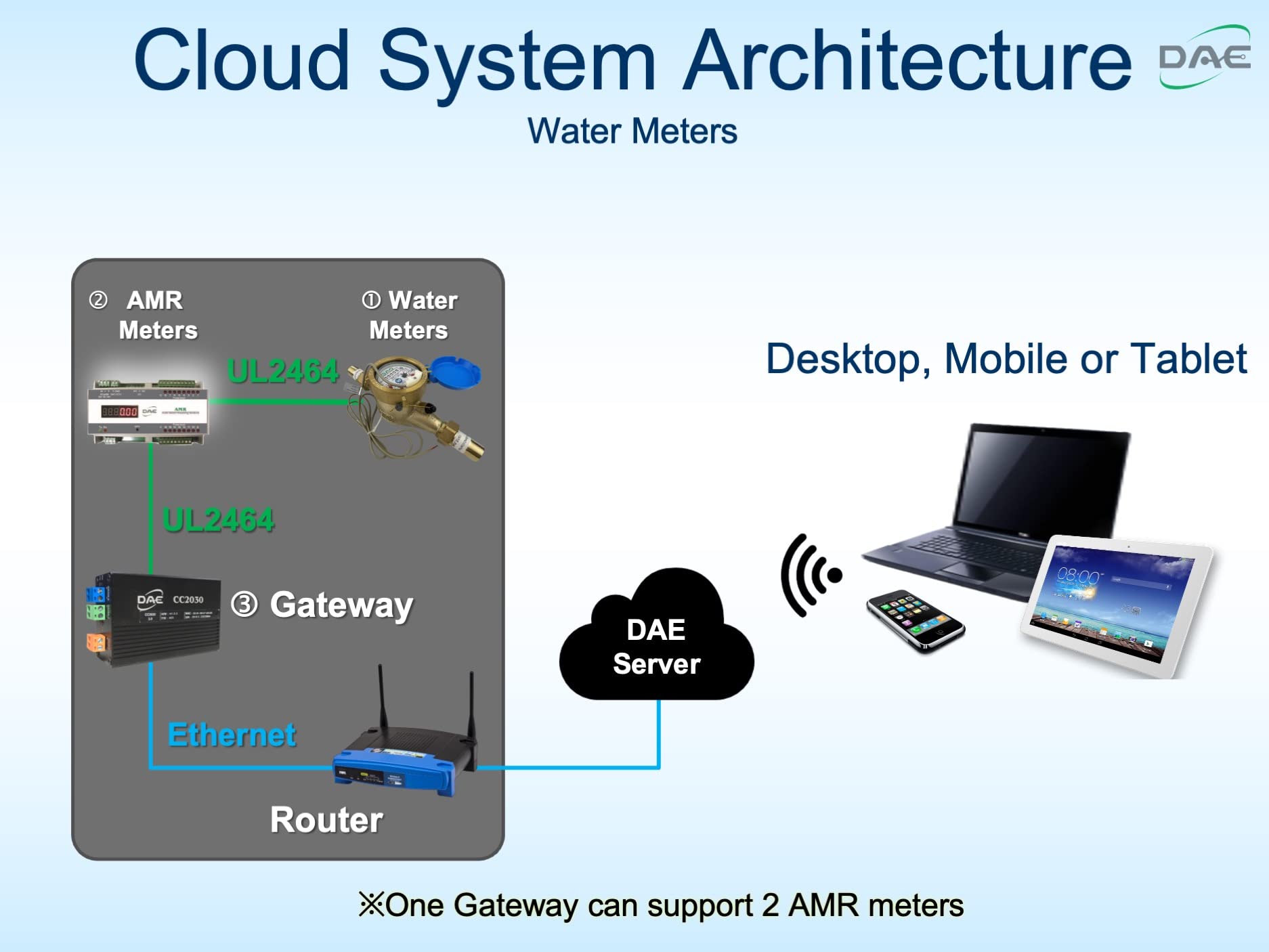

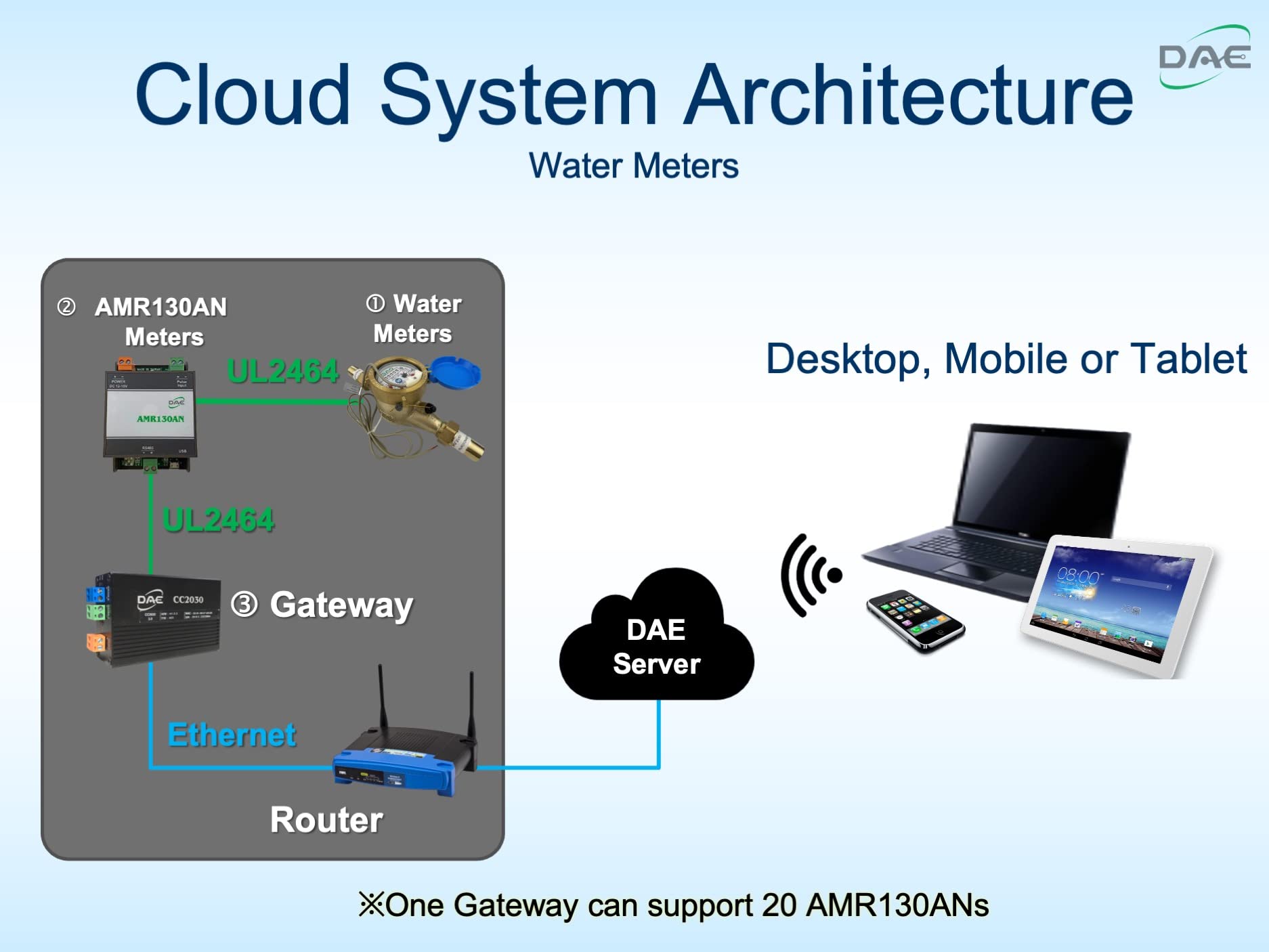

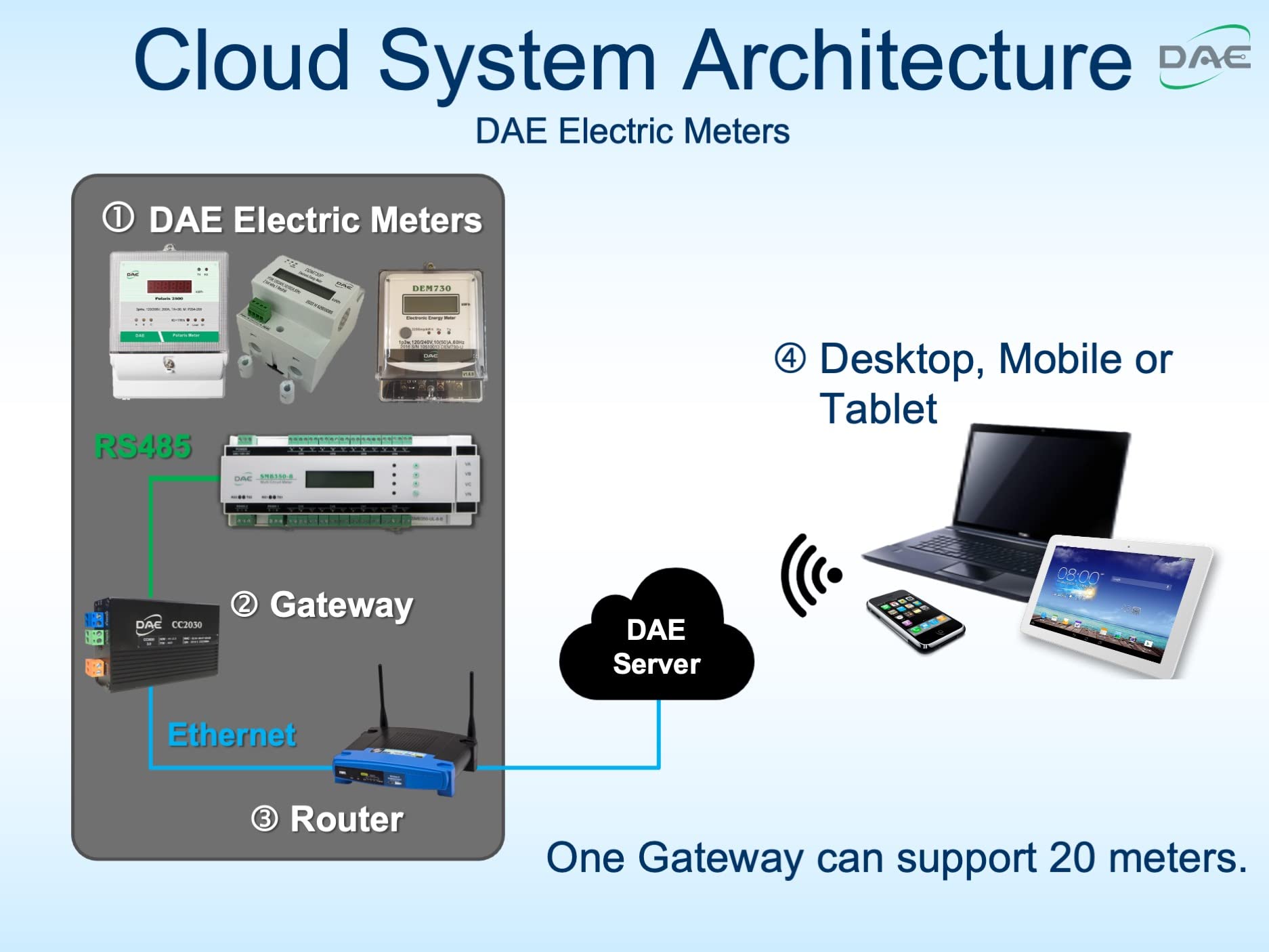

DAE CC2030 KIT Power DC 12-24V Power Consumption 5VA Operating Temperature -40 to 70C (-40 to 158F) Relative Humidity 0~90% non-condensing Item Dimension 3.93" x 2.56" x 1.38" (100 x 65 x 35 mm) Din Rail Mount TS35/7.5 or 15 The accessories (included in the listing) are the power supply (output 12V DC, input 120V AC, for CC2030), Din rail (to install CC2030 Gateway to the wall), Cat5e Cable (to connect CC2030 to Router), UL2464 cable (66 ft, to connect CC2030 & Electrical Meters), Software registration key fee (for 1 meter). Cloud Metering for Water 1 AMR130AN KIT + 1 CC2030 KIT 1 DAE CC2030 KIT Gateway + 1 AMR130AN KIT can read 1 water meter with pulse output (like DAE AS200U-75P, MJ-75, PD-100, V-75P, VM-75P and WP-300P) remotely with cell phone, PC and generate billing report. One CC2030 Gateway can monitor 20 meters ( water, electricity, and gas). 1 AMR130-RN KIT+1WSC500A + 1 CC2030 KIT For existing building, hard to draw cable between AMR130AN and CC2030, please choose 1 AMR130-RN KIT + 1 CC2030 KIT + 1 WSC500A to connect them wirelessly. For remotely monitoring a water meter in an area without power like the one in the farm, please choose CC2030 KIT+AMR130RB+WSC500A to connect Battery-Powered AMR130RB (close to water meter) and CC2030 (close to your router) wirelessly. 1 AMR KIT + 1 CC2030 KIT For monitoring up to 16 water meters remotely, you will just need 1 AMR KIT + 1 CC2030 KIT. 1 AMR KIT+2 WSC500A + 1 CC2030 KIT For existing building, hard to draw cable between AMR (close to water meter) and CC2030 (close to your router), please choose 1 AMR KIT + 1 CC2030 KIT+ 2 WSC500 RF Converters to connect them wirelessly. Cloud Metering for Electricity 1 CC2030 KIT + Up to 20 DAE Electrical Meters For DAE Cloud Metering Solutions on electricity, in additional to CC2030 KIT Gateway, you will need electric submeters with RS485 communication like DAE Polaris 2500 series (ex. P254-200-S KIT, 3 hot wire, 1 neutral) or DAE Polaris 1500 series (ex. P153-200-S KIT, 2 wire 1 neutral) or SMB350-UL-8-B KIT (24 circuits) Wireless Cloud Metering for Electricity 1 CC2030 KIT + Up to 20 DAE Electrical Meters + 2 WSC500A RF Converter For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly. Western Dovetail, Inc, Vallejo, CA 2 P153-200-S KIT + 2 MJ-100 + 2 AMR130AN KIT + 1 CC2030 KIT "Great system, excellent support, works like a charm right out of the box. JJ answered all my questions even on the weekend. Online software was all set up in advance. Highly recommend to anyone needing to set up metering for tenants." Scientific Cutting Tools, Inc, CA 1 P254-400 KIT + 1 CC2030 KIT DAE CC2030 Gateway will collect the kWh data and send them to the cloud through Ethernet. With cell phone, PC, you will be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants. Back Flow Prevention Valve You must have back-flow-prevention valve in your piping system, or the reading of Cell phone/PC may be more than the reading of water meter due to the backflow. Most of US piping system have back-flow-prevention valve. If not, please install one or refer to Non-Return-Valve (like NRVAS-75 for AS200U-75P) in DAE Controls Website, an in-expensive backflow prevention valve to be installed at the outlet of water meter. UL2464 Shielded Twisted Pair Cable with Drain Wire, 24 AWG To securely transfer metering data for DAE Cloud Metering Solutions on Water, please use DAE UL2464 cable to extend connection between water meters (have about 4 ft pulse cable) and AMR130/AMR, or reading of Cell phone/PC may be more than reading of meter due to exterior interference. With UL2464 cable, connection between meter, AMR130/AMR can be extended at least 328 ft, and at least 2000 ft between CC2030, AMR130/AMR. DAE B1725 Plastic watertight NEMA 4 IP66 Universal Electrical Enclosure with Mounting Plate Indoor use only, DAE B1725 watertight enclosure is available for outdoor use. DAE CC2030 DAE CC2030 KIT DAE CC2030 KIT + AMR130AN KIT DAE CC2030 KIT + AMR130-RN KIT Buying Options Add to Cart Add to Cart Add to Cart Customer Reviews — 3.6 out of 5 stars 11 3.6 out of 5 stars 11 3.6 out of 5 stars 11 Price — no data $367.00$367.00 $516.00$516.00 $632.99$632.99 Accessories (power adapter, din rail, Cat5e cable, 1 registration key, 1 software key) no data ✓ ✓ ✓ Support up to 20 Water Meters ✓ ✓ ✓ ✓ Support up to 20 Electrical Meters ✓ ✓ no data no data
